How Bad Are Delays in Microdialysis Probes?

One researcher mentioned they eventually had to switch vendors, after calling 3 different vendors trying to source microdialysis equipment.

Another said they “had to wait 3 months for a microdialysis syringe pump”.

In other conversations, users have mentioned that some models of microdialysis probes or microdialysis accessories could be back-ordered for months.

When research projects aren’t able to source products necessary for research, science suffers, medicine suffers, humanity suffers. It sounds extreme, but each scientific article published is a result of years of research using lab tools necessary to complete the work.

Without the goods, our scientists lack the tools needed to advance knowledge and discovery that advances human lives.

Most microdialysis probes and accessories are still in stock at Amuza. However, when some inventory does reach low levels, Amuza has still been able to get partial orders out the door quickly. For researchers, Cole suggests, “Ask your supplier. Some suppliers may be able to help you with partial shipments to keep your research going.” At least neuroscience research can stay moving and not halt progress.

What lab products are you finding most difficult to source? Let us know in the comments.

Successful fiber photometry in mazes and other complex environments

Successful fiber photometry in mazes and other complex environments

by | Oct 15, 2021 | Fiber Photometry

Fiber photometry is most commonly used to monitor activity and chemical signaling at a specific location in the brains of freely moving animals. The technique uses fluorescent sensor proteins to report on the changing local concentration of calcium and neurotransmitters in real-time. To capture the fluorescent signal, an optical fiber is implanted in the brain with the tip just above the region of interest.

Fiber photometry: Wireless vs patch cord

Traditionally, a fiber optic patch cord (patch cable) is used to both deliver the excitation light to the animal and return the fluorescent signal to a fluorescence cube and a detector outside the cage. However, patch cords can create severe limitations for researchers. Sometimes the cord can directly affect the behavior of the animals: mice become confused, tilt their head, gnaw on the cord, or otherwise react to its presence. The patch cord can also run into objects in the environment, limiting the animal’s ability to move or carry out tasks. Patch cords can also introduce noise and artifacts into the signal when used with fiber photometry. Patch cords also complicate scoring of freezing behavior in fear conditioning experiments. Even after an animal freezes (stops moving), the patch cord can keep swaying, and some video tracking software will confuse this with the continued movement of the animal.

Many mazes, for example, elevated zero mazes and elevated plus mazes, have high walls which can trap the cable as a mouse or rat moves from an open area to an enclosed area.

Zero Maze

Elevated Plus Maze

Combining fiber photometry with behavioral measures for anxiety

Rodents typically prefer enclosed locations, and become anxious in unenclosed, wide-open spaces will limit their time spent exploring wide-open spaces. Anxiety levels play a strong role in how willing mice are to explore the unenclosed areas of a maze, so the zero maze is frequently used to study if a drug or other intervention is anxiolytic or anxiogenic. But a patch cord catching on the end of a wall could prevent a mouse from returning to the enclosed alley, so the researcher may have to be present to manipulate the cord.

Patch cords hanging from above a maze can get caught in doorways and at the ends of alleys.

In contrast, users have found mice fitted with wireless headstages such as those used with Amuza fiber photometry, optogenetics, and EEG have no trouble navigating mazes, and users report that the animals behave naturally.

For example, the Dimitrov lab at Rosalind Franklin University studies how stress and pain pathways interact in the brain. They used fiber photometry to monitor calcium fluorescence in the mPFC (medial prefrontal cortex) of mice traversing an elevated Zero maze while subject to inflammatory pain. They simultaneously monitored anxiety-like behavior by using video tracking to determine how much time the mice spent in exposed vs enclosed areas of the maze. They found that calcium fluorescence increased in male mice placed in the maze while subject to inflammatory pain, but there was no change in female mice under those conditions. Combined with other results, this finding suggests that sex-linked differences in the neural circuit between the locus coeruleus and mPFC are related to the differences in behavior and cognition displayed by male and female mice when subjected to inflammatory pain.

fiber photometry

FREE Fiber Photometry eBook

Amuza offers a FREE Wireless Fiber Photometry eBook. This ebook introduces topics and references critical for using fiber photometry during behavioral experiments

Download eBook

Cardenas A, Papadogiannis A, Dimitrov E. The role of medial prefrontal cortex projections to locus ceruleus in mediating the sex differences in behavior in mice with inflammatory pain. FASEB J. 2021 Jul;35(7):e21747.
https://pubmed.ncbi.nlm.nih.gov/34151467/

Animals: male and female mice
Sensor: GCaMP6f (calcium)
Vector: pAAV5.Syn.GCaMP6f, pAAV5.Syn.GCaMP6f.WPRE.SV40
Target Region: right mPFC (medial prefrontal cortex)
Coordinates: 1.8, ±0.4, and −2.2 mm in respect to bregma
Fiber: fiber core 400 μm NA 0.39, length 3 mm
Behavior test: Elevated O-maze
Fiber photometry data analysis: Amuza TeleFipho software
Model: Injection of complete Freund’s adjuvant (CFA) as a model for inflammatory pain.
Results: Inflammatory pain altered the calcium fluorescence signal from the mPFC of male mice placed on an elevated 0-maze, but did not alter the signal in female mice.

My lab has been using TeleFipho wireless photometric system for the past two years. The system is simple to use, durable and reliable. The practicality of TeleFipho allowed us to collect in vivo data about the neuronal activity of various limbic regions of the CNS during behavioral tests in mice.

Eugene Dimitrov MD, PhD

Assistant Professor, Department of Physiology and Biophysics Center for the Neurobiology of Stress Resilience and Psychiatric Disorders Rosalind Franklin University of Medicine and Science

Other mazes which require a mouse to pass through or a doorway or tunnel, such as the puzzle box maze, Light/Dark box, and many social interaction tests, can also present difficulties when using patch cords. Yunlei Yang’s lab used Amuza fiber photometry while mice explored a light/dark box to help characterize an anxiogenic circuit between septal OXTr neurons and the HDB, and identified a possible cause of OXT therapy side effects.

Huang, Tuanjie, Fangxia Guan, Julio Licinio, Ma-Li Wong, and Yunlei Yang. “Activation of septal OXTr neurons induces anxiety-but not depressive-like behaviors.” Molecular Psychiatry (2021): 1-10.
https://pubmed.ncbi.nlm.nih.gov/34489531/

Animals: Male and female C57BL/6 J and Oxtr-Cre mice.
Sensor: GCaMP6s (calcium)
Vectors: AAV1-hSyn1-GCaMP6s-P2A-nls-dTomato, AAV1-hSyn1-axon-GCaMP6s
Target Region: Fiber: vHPC (ventral hippocampus) Vector: lateral septum.

Fiber: fiber core 400 μm diameter, NA 0.39
Behavior test: light-dark box, Elevated Plus Maze
Fiber photometry data analysis: Amuza TeleFipho software
Results: Anxiogenic conditions activate the vHPC and vHPC projections to the lateral septum, as shown by increased calcium levels.

Problems with tethers also apply when using optogenetics and EEG, which is why we recommend using wireless optogenetics and EEG with freely moving animals.

5 Tips for Successful EEG and EMG Recording in Freely Moving Mice and Rats

5 Tips for Successful EEG and EMG Recording in Freely Moving Mice and Rats

by | Jun 11, 2021 | Wireless Neuroscience

Sleep research frequently relies on EEG (Electroencephalography) and EMG (electromyography) to discern between different sleep and wake states of the mice and rats used as models. The combination of EEG and EMG is powerful enough to discern not just between the different sleep and wake states, but also between the different stages within sleep and wake states.

In this article, we’ll show you how to reliably record EEG and EMG, with neural stimulation in untethered mice and rats.

EEG is also frequently used to record seizures in mouse and rat models of epilepsy, as well as for studying Huntington’s, Alzheimer’s, schizophrenia, migraine, and other disorders. Typically epidural EEG, aka Electrocorticography (ECoG), where the electrodes are placed directly on the cortex, is used.

1. Consider alternatives to tethers in EEG experiments

Equipment choice affects the success or failure of many EEG experiments. Typically, a tethered system is used, with implanted electrodes connected via a long cable to the recording system. Tethers are often the weak link in EEG experiments. Tethered mice become tangled, especially during seizures, severely limiting normal mice behavior. Slip rings, swivels, and balance arms can help prevent tangling, but mice do not create enough torque when they move to rotate many slip rings. Rats also chew on the cables, frequently damaging or destroying them. Complete disconnections also occur when animals pull on the cables, ending the recording and injuring the animals.

As an alternative to tethered animals, wireless EEG equipment helps reduce altering the normal actions of freely moving and behaving animals. Wireless EEG equipment also reduces the limitations of environments available for studying behavior.



2. Eliminate electrical noise and artifacts

Tethered EEG equipment often suffers from poor signal-to-noise ratios. Cables act as antennae, picking up electrical noise from AC power lines, motors, and other sources. This leads to artifacts in the data, complicating interpretation. Faraday cages can limit noise from external sources but become awkward and inconvenient when working with multiple animals. Faraday cages also do not protect against motion artifacts caused by the movement of the tether itself. Even connecting a preamplifier directly to the electrodes, so that amplified signals are sent through the tether, does not always eliminate AC and other noise from the system. A preamplifier can also make the system too heavy for use with mice. Additionally, multiple tethered systems in the same room can also lead to interference and noise.

3. Eliminate system limitations that affect your EEG experiment

The issues surrounding tethers have led to a shift to wireless EEG equipment. Wireless inductive telemeters addressed many of the problems of tethered systems, but bring with them other challenges.
Limits to Size and Type of Environment – Inductive systems require the animals to remain directly on top of a special charging pad or platform, limiting the size and type of environments which can be used during behavioral research.
Limits to Channel Bandwidth – Some telemetry systems also limit the bandwidth or number of channels available for EEG signals.
Limits to Sensitivity and Scale Up – Surprisingly, some wireless systems are still vulnerable to AC noise, possibly because of inadequate shielding. The number of frequencies available also limits wireless systems using radio to send data, capping the number of animals that can be monitored in one room.

As an alternative, researchers can use a lightweight data logger small enough to sit on the head of a mouse. The electrodes connect directly to the well-shielded data logger, preventing electrical noise from power lines.
Since data is stored onboard using a microSD card, there is less chance of signal interference and scaleup to more animals is unlimited.

The rechargeable data loggers are as small as 2g, allowing mice to behave normally during chronic recording sessions in any size cage or chamber.



4. Reduce electrode implant surgery time and complexity

PCB-based electrodes can make implantation surgery more complicated and time-consuming, leading to higher failure rates. A simple, flexible electrode design, such as the one shown below, makes for easy implantation.

The Amuza standard electrode set uses a universal 1.27 mm pitch pin and socket connector, making it easy to create your own electrode sets. Our standard electrode has two screws for EEG, two silver wires for EMG, and one screw for GND.

5. Look for universally compatible EEG data processing and analysis

As part of a research team, or in a collaborative setting, it is important to consider using EEG equipment that makes for seamless sharing of data. Proprietary data formats and readers can complicate sharing and processing your data. Incompatible systems can become an unexpected expense when you need one software license to run your EEG system and another for the PC in your office where you process the data.

Amuza’s EEG data analysis software combats these unplanned expenses in four ways:

  1. Amuza’s EEG data analysis software is included with the system free of charge
  2. Amuza’s EEG data analysis software can be installed on multiple computers without extra licensing fees.

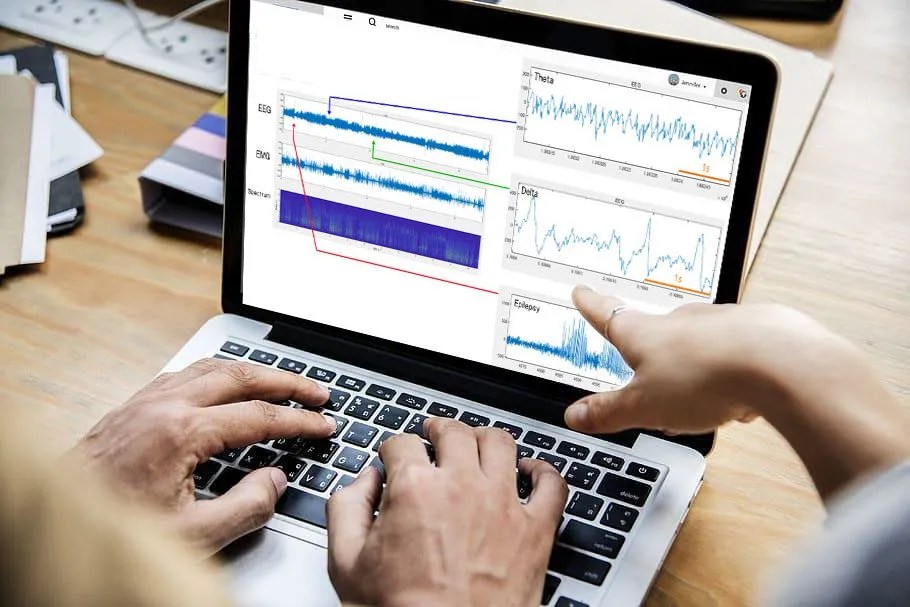

  3. Through an intuitive platform, Amuza’s EEG data analysis software enables a quick overview of your data, as well as

    filtering and simple (FFT-based) alpha, theta, delta power calculation. It can also create hypnogram plots for sleep analysis.

    4. Data from Amuza’s EEG data analysis software is also compatible with MatLab and Octave and can be exported to EDF or TXT. No dedicated reader or software is required.

Amuza’s EEG data analysis software combats these unplanned expenses in four ways:

  1. Amuza’s EEG data analysis software is included with the system free of charge
  2. Amuza’s EEG data analysis software can be installed on multiple computers without extra licensing fees.
  3. Through an intuitive platform, Amuza’s EEG data analysis software enables a quick overview of your data, as well as

filtering and simple (FFT-based) alpha, theta, delta power calculation. It can also create hypnogram plots for sleep analysis.

4. Data from Amuza’s EEG data analysis software is also compatible with MatLab and Octave and can be exported to EDF or TXT. No dedicated reader or software is required.

There is no other system which meets my requirements for wireless operation, channel count, and usability with mice.

Yet-to-be-published ELG-2 User
