Tethered vs wireless EEG in rodents: telemetry vs onboard recording explained

Apr 23, 2026 | EEG, Wireless Neuroscience

When planning a rodent EEG/EMG recording experiment, one of the most important decisions is wireless vs tethered EEG in rodents, as this choice directly impacts data quality, synchronization, experimental design, and animal behavior.

Tethered, wireless telemetry, and onboard memory systems each offer distinct advantages depending on your study goals. Understanding how these systems differ will help you select the right approach for your experiment.

EEG/EMG Recording System Comparison
Feature	Tethered Systems	Wireless Telemetry	Onboard Memory
Signal Quality	Excellent, high SNR	Good, may vary with interference	Excellent, very low noise
Real-Time Monitoring	Yes	Yes	No
Animal Mobility	Limited	High	Maximum
Synchronization	Hardware-level, straightforward	Clock- or trigger-based	Post hoc alignment required
Recording Duration	Unlimited (powered)	Battery-limited	Battery & memory-limited
Setup Complexity	Higher during experiments	Moderate	Higher during planning
Best For	Precise timing, stimulus studies	Behavioral freedom	Long-term, low-noise studies

Not sure which EEG/EMG system is right for your study?

Every experiment has different requirements for data quality, synchronization, and animal behavior. Our team can help you choose the best recording approach for your specific research goals.

Talk to a specialist

Signal flow differences between tethered, wireless telemetry, and onboard memory EEG/EMG recording systems.

Tethered EEG/EMG Systems: Direct Signal Transmission With Physical Constraints

Tethered EEG/EMG recording systems transmit signals through physical cables connecting the animal to a commutator positioned above the recording arena. From a signal integrity standpoint, this direct electrical connection is a major advantage. High-bandwidth, low-latency data can be streamed continuously with minimal concern for data loss or onboard storage limitations.

Time synchronization with external devices—such as behavioral tracking systems or stimulus controllers—is straightforward, as all signals can be routed through a single data acquisition system.

Tip: Synchronization matters

If your experiment relies on precise alignment between EEG/EMG data and behavioral or stimulus events, consider how synchronization is handled before choosing a recording system. Hardware-level sync and post hoc alignment workflows differ significantly in complexity and accuracy.

However, the mechanical nature of tethers introduces additional considerations. Even high-quality commutators can introduce noise if not properly maintained, and cable movement may appear as artifacts in data collected from awake, behaving animals.

Pros of tethered EEG/EMG systems

Excellent raw signal fidelity and high signal-to-noise ratio
Real-time, hardware-level synchronization with video or stimuli
Continuous recording without battery constraints

Cons of tethered EEG/EMG systems

Cable-related stress and reduced animal mobility
Potential for movement-induced artifacts
More complex experimental setups to accommodate tethering hardware

For studies requiring greater flexibility and reduced physical constraints, wireless EEG recording systems may offer a more practical alternative.

Wireless EEG/EMG Telemetry Systems: Increased Freedom With Data Tradeoffs

Wireless EEG/EMG telemetry systems eliminate physical tethers by transmitting data wirelessly (often via radio frequency or Bluetooth) to a nearby receiver. This approach improves animal mobility and reduces the risk of cable-related artifacts, often resulting in more ethologically relevant behavior during recording.

Because signals must be digitized and transmitted, wireless systems introduce additional points where data quality may be affected. Interference, signal dropouts, or data compression can occur, depending on the environment and system design. Synchronization with behavioral data is achievable but typically relies on shared clocks, timestamps, or external trigger signals rather than a single acquisition chassis.

Pros of wireless telemetry systems

Improved animal mobility and reduced stress
No cable-based artifacts
Real-time synchronization with behavioral data, typically with millisecond-level delays

Cons of wireless telemetry systems

Higher risk of interference or data loss
Battery life limits recording duration
Often require one-to-one transmitter–receiver pairing

Learn more about how wireless systems improve experimental design in our article on wireless EEG in rodents.

Onboard Memory EEG/EMG Systems: Clean Data With Added Planning Requirements

Onboard memory EEG/EMG recorders take a different approach by digitizing and storing data locally on a headstage or implant rather than transmitting it during acquisition. Because the signal does not travel through cables or over the air while recording, this method can produce exceptionally low-noise data. Like wireless telemetry systems, onboard memory systems allow animals to move freely during experiments.

A key tradeoff is that data cannot be accessed in real time and is only available after the recording session ends. Synchronizing EEG/EMG data with behavioral recordings requires careful coordination of internal clocks or the use of visual time markers—such as LEDs visible in video recordings—to align events post hoc.

Pros of onboard memory EEG/EMG systems

Very low-noise recordings with no transmission artifacts
Well-suited for long-duration or minimally supervised studies
Minimal experimental infrastructure once implanted

Cons of onboard memory EEG/EMG systems

No real-time data monitoring
Precise time-alignment strategies required
Recording duration limited by battery capacity and sampling rate

Animal Stress and Experimental Complexity Considerations

Animal welfare in EEG/EMG studies is closely tied to both surgical burden and post-surgical mobility. Tethered systems often use smaller head-mounted connectors but restrict movement during recording sessions. Wireless telemetry and onboard memory systems typically involve more complex implants but allow animals to behave more naturally once recovered.

Research insight: Animal welfare affects outcomes

Reduced movement restriction during recording can help minimize stress-related confounds, particularly in sleep, anxiety, and circadian rhythm studies.

Across EEG/EMG system types, stress-related factors vary depending on surgical invasiveness and the range of motion required for the study:

Tethered systems: Lower implant mass, greater movement constraints during recording
Wireless telemetry systems: Moderate implant complexity, high post-recovery mobility
Onboard memory systems: Higher implant integration, maximum freedom after recovery

Balancing these factors is particularly important in sleep, circadian rhythm, anxiety, and behavioral neuroscience studies, where stress and movement constraints can directly influence outcomes.

Choosing the Right EEG/EMG Recording System for Your Experiment

The optimal EEG/EMG recording approach depends on whether your priorities include real-time data access, freedom of movement, signal purity, or experimental simplicity. Tethered systems excel in robustness and synchronization, wireless telemetry systems emphasize natural behavior, and onboard memory systems prioritize clean recordings and autonomy.

By aligning your EEG/EMG recording strategy with your scientific goals—and accounting for the tradeoffs of each system—you can design experiments that produce reliable data and support confident conclusions.

In some experiments, combining recording methods with tools like optogenetics can provide deeper insight into neural activity.

Not sure which EEG/EMG system fits your study?

Every experiment has different constraints around mobility, signal quality, and synchronization. Our team works with multiple EEG/EMG architectures and can help you think through the tradeoffs for your specific research goals.

Talk with a specialist

Designing Effective Operant Conditioning Tasks for Rodent Studies

Jan 20, 2026 | Behavioral Tests, Neuroscience

Designing rodent operant conditioning tasks requires careful planning, precise control of experimental variables, and a clear understanding of how task structure influences behavioral outcomes. Even small design choices can substantially affect learning rates, response strategies, and reproducibility across laboratories.

This guide outlines key principles for designing rigorous and reproducible operant conditioning tasks, with a focus on aligning behavioral assays to specific research questions while minimizing confounding variables.

Illustration of a mouse performing an operant conditioning task in a chamber.

Why Task Design Matters in Operant Conditioning

Operant conditioning relies on reinforcing desired behaviors through rewards or the removal of aversive stimuli. These paradigms are widely used to investigate motivation, decision-making, impulsivity, cognitive flexibility, and other higher-order behavioral processes.

However, outcomes can vary widely between laboratories depending on how tasks and experimental environments are designed. Parameters such as response modality, reinforcement schedule, session duration, arena geometry, and housing conditions can all influence how quickly animals acquire a task and how consistently they express learned behaviors.

Small Design Choices, Large Behavioral Effects

Minor differences in response modality, reinforcement timing, or arena geometry can significantly alter learning rates, response strategies, and reproducibility across labs.

Key Considerations When Designing a Task

Align Response Modality and Arena Design With the Subject

Response modality should be selected based on the species and the behavioral demands of the task. In mice, response types that align with natural exploratory behaviors—such as nose-poking—are often learned more rapidly and performed more reliably than lever pressing.

Under simple reinforcement schedules (e.g., fixed-ratio), response modality may not strongly affect acquisition. Differences are more likely to emerge under demanding schedules such as progressive ratio, visual discrimination, or multi-choice paradigms.

Arena design also plays a critical role in task performance. Trapezoidal chamber geometries, originally described by Bussey and Saksida, have been shown to improve attention and performance in visual discrimination and touchscreen-based tasks by better orienting the animal toward relevant stimuli. Today, such chamber designs are commonly available through commercial operant conditioning systems, making it easier to standardize task environments across studies.

Response modality at a glance

Icons comparing nose-poke, lever press, lick response, and touchscreen tap.

Response Modality	Species Fit	Acquisition Speed	Typical Use Cases
Nose-poke	Mouse	Fast	Choice assays, discrimination tasks
Lever press	Rat	Moderate	Effort-based and habit tasks
Lick response	Mouse/Rat	Fast	Sensory detection, go/no-go
Touchscreen tap	Mouse/Rat	Moderate	Executive function, cognitive flexibility

Choose Reinforcement Schedules That Match Experimental Goals

Simple fixed-ratio schedules are widely used and often sufficient for basic learning and acquisition tasks.

When the goal is to probe motivation, effort, or reward valuation under challenge, more demanding schedules—such as progressive ratio or higher fixed-ratio schedules—are often more informative.

In experiments where reproducible and stereotyped behavior is critical, such as neurophysiology, kinematic analyses, or pharmacological studies, reinforcement parameters become especially important. Cueing reward delivery can accelerate acquisition, but may also encourage rapid bursts of responding rather than structured response patterns. These effects should be considered carefully during task design and interpretation.

Design Tip

Progressive ratio schedules are often more sensitive to motivation, while fixed-ratio schedules can mask subtle effort-related differences.

Schedule selection guide

Schedule Type	Best For	Key Consideration
Fixed Ratio	Acquisition and basic learning	May be less sensitive to motivation/effort
Progressive Ratio	Motivation, effort, reward valuation	Higher fatigue/stress risk; interpret response drops carefully
Cued Schedules	Rapid acquisition and response timing	Can bias toward burst responding vs. structured bouts

Control Session Structure, Training Frequency, and Housing Conditions

Behavioral outcomes are shaped not only by task structure, but also by training duration, session frequency, and housing conditions. Key trade-offs include:

Session duration and frequency: Longer or more frequent sessions may accelerate acquisition but can increase fatigue or stress.
Housing conditions: Social vs. isolated housing influences motivation and variability; isolation may increase stress, while group housing can introduce social effects.
Automation: Automated or home-cage training systems can reduce handling-related stress and improve scalability and reproducibility.

Reproducibility Boost

Standardizing training conditions and reducing experimenter intervention can lower inter-subject variability and improve across-cohort comparability.

A Step-by-Step Framework for Task Design

Define the target behavior

Determine whether the task is intended to assess attention, impulsivity, motivation, cognitive flexibility, sensory processing, or another behavioral domain.

Select a response modality

Choose a response type (e.g., nose-poke, lever press, lick response, touchscreen) that matches the species and task complexity.

Choose a reinforcement schedule

Start with simple schedules for acquisition, then progress to more demanding schedules as needed to address the research question.

Set session parameters

Define session duration, frequency, inter-trial intervals, and cueing strategies to support consistent learning and stable performance.

Pilot & shape behavior

Gradually increase task demands to avoid overwhelming animals or introducing stress-related confounds.

Control environment & housing

Minimize handling where possible, consider automation or home-cage training, and evaluate housing strategies based on experimental goals.

Common Pitfalls in Operant Conditioning Task Design

One-size-fits-all task designs:
A task optimized for simple reward-seeking may not translate to complex assays involving cognitive flexibility, delayed responses, or drug sensitivity. Task design should always match the specific question being asked.
Confusing motor fatigue with learning deficits:
Under demanding or repetitive schedules, reduced response rates may reflect motor fatigue rather than impairments in learning or motivation. Distinguishing these effects is critical for accurate interpretation.
Uncontrolled stress or environmental variables:
Excessive handling, inconsistent housing conditions, or manual training protocols can introduce variability. Automation and standardized environments can improve reproducibility.
Poor cueing and feedback timing:
The timing and nature of cues and reinforcement signals strongly influence behavior. Improper cueing can bias response strategies, leading to rapid, unstructured responding rather than stable performance.

Conclusion

Designing effective operant conditioning tasks requires clarity about what is being measured and deliberate alignment between behavior, reinforcement strategy, environment, and subject conditions. Even small differences in task design can dramatically influence experimental outcomes.

By carefully selecting response modalities, reinforcement schedules, session parameters, and environmental controls, researchers can maximize the likelihood that operant conditioning tasks yield meaningful, reproducible insights into rodent behavior, neurobiology, and disease mechanisms.

References

Kuhn BN, Kalivas PW, Bobadilla AC. Understanding addiction using animal models. Front Behav Neurosci. 2019;13:262. doi:10.3389/fnbeh.2019.00262
Brady AM, Floresco SB. Operant procedures for assessing behavioral flexibility in rats. J Vis Exp. 2015;(96):e52387. doi:10.3791/52387
Mar AC, Horner AE, Nilsson SR, et al. The touchscreen operant platform for assessing executive function in rats and mice. Nat Protoc. 2013;8(10):1985–2005. doi:10.1038/nprot.2013.123

Combining Wireless Optogenetics and Fiber Photometry for Closed-Loop Experiments

Dec 18, 2025 | Fiber Photometry, Optogenetics

Optogenetic stimulation and fiber photometric recording have played crucial, yet distinct, roles in in vivo behavioral neuroscience. These tools allow researchers to directly link the activity of specific cell types and brain regions to observable behaviors, helping to understand how brain circuitry drives learning and emotion, among other functions.

Optogenetics and fiber photometry have developed significantly in the past couple of decades, including integrating components into a wireless headstage mounted on the head of a subject. Wireless headstages greatly improve mobility and reduce stress, thus increasing the reliability and reproducibility of behavioral data.

Only recently, however, has technology advanced to the point of consolidating optogenetics and fiber photometry into one wireless headstage. This has reduced experimental design complexity and surgical invasiveness, which allows researchers to simultaneously explore the circuitry connecting inputs and outputs in closed-loop experiments while observing behavior.

Wireless Optogenetics Offers Freedom anda Precise Control

With optogenetics, researchers modulate defined cell populations that express opsins sensitive to specific wavelengths of light, which in turn activate or inhibit these cells when exposed to these wavelengths. Optogenetics offers precise, millisecond-level temporal control over cellular activity. This level of control has made it possible to probe the neural underpinnings of fear, motivation, and learning among other functions of the brain, and to model neurological and psychiatric conditions with remarkable specificity.

Yet, the flexibility of optogenetic setups has been limited by tethering of the subject to transmit light from a light source to the brain. Tethered optic fibers can restrict movement, increase stress, and interfere with behavior, especially in confined settings, when integrating other tethered technology, or during social interaction trials. Wireless optogenetic systems solve this problem by freeing subjects to move, explore, and interact, modeling natural behaviors more closely.

However, researchers observing the effects of stimulation with wireless optogenetics still rely on less direct readouts, such as behavioral outcomes or postmortem histological analysis, to infer what is happening in the brain. This is where fiber photometry comes in.

Wireless Fiber Photometry Helps Capture Cellular Activity in Real Time

Real-time responses of specific cell populations in the brain, expressed as light emissions from genetically encoded fluorescent biosensors (such as GCaMP, GRABDA, and RCaMP), are captured through fiber photometry. Unlike histological or behavioral readouts, fiber photometry delivers high temporal and cell-type specific resolution, making it possible to see how neural activity unfolds in milliseconds.

Example fiber photometry signal trace showing changes in fluorescence over time that reflect real-time neural activity.

Wireless options for fiber photometry have also been developed, reducing animal stress and addressing noise,artifacts, and signal loss in data from optic fiber tether twisting or light having to pass through rotary joints and commutators. Wireless fiber photometry offers cleaner, more reliable data. In fact, modern wireless fiber photometry can simultaneously record from two wavelengths and/or two brain regions, enabling researchers to examine the dynamic relationships between distinct cell populations such as excitatory and inhibitory neurons, glial cells, or to compare activity across hemispheres or circuits.

Until recently, traditional setups have limited researchers to observation separate from manipulation. The size and complexity of conventional optogenetic and fiber photometry headstages made integration of the two technologies impractical.

Tethered vs Wireless: Separate and Integrated Approaches

Approach	Behavior	Data Insight	Workflow
Tethered systems	Restricted movement, higher stress	Manipulation or observation, often separate	More hardware, cable management
Wireless, separate systems	More natural behavior	Stimulation and recording still decoupled	Multiple devices to coordinate
Integrated wireless systems	Freely moving, minimal interference	Simultaneous stimulation and recording	Streamlined surgery and setup

Combined optogenetics and fiber photometry usher in a new era in neuroscience

With wireless optogenetic stimulation and fiber photometric recording integrated into a single compact headstage, researchers can design closed-loop experiments that investigate cause and effect within the brain with high precision. By activating or silencing the input end of a circuit while recording the output end in real time, they can reveal how one brain region influences another as the animal behaves, learns, or remembers. This simultaneous approach provides a more holistic understanding of brain function.

TeleFiOpto, one of the first commercially available systems that combines wireless optogenetics and fiber photometry, has been instrumental in advancing studies of learning and memory. In one example, scientists using TeleFiOpto have shown that dopaminergic inputs from the ventral tegmental area (VTA) to the hippocampus are essential for maintaining and adapting spatial memory in mice. In another instance, TeleFiOpto has helped clarify the interactions among various types of neurons in hippocampal disinhibitory circuits while subjects explore novelty in their environment, revealing the mechanisms underlying the formation of recognition memory.

These findings, made possible only through wireless simultaneous stimulation and recording, underscore how the integration of these technologies is transforming our understanding of complex neural processes.

Wireless fiber photometry and optogenetics untether technological advances in translational science

Wireless systems that combine optogenetics and fiber photometry, such as TeleFiOpto, help scientists explore the brain in novel ways that can directly link activity of specific cell populations to corresponding behavior, particularly in pathological conditions. These systems offer real-time manipulation and recording of cellular activity within freely moving and behaving subjects, minimizing invasiveness and stress on subjects while maximizing control and data quality.

With the continued evolution of these systems, our understanding of how brain circuits drive behavior, emotion, and learning continue to expand.

Considering Closed-Loop Experiments?

If you’re planning to combine wireless optogenetics and fiber photometry in a
closed-loop workflow, our team can help you think through configuration,
channels, and experimental design.

Talk with an Amuza neuroscience specialist

References

Tamatsu Y, Azechi H, Takahashi R, et al. Optogenetic activation of the ventral tegmental area-hippocampal pathway facilitates rapid adaptation to changes in spatial goals. iScience. 2023;26(12):108536. Published 2023 Nov 23. doi:10.1016/j.isci.2023.108536

Tamboli S, Singh S, Topolnik D, et al. Mouse hippocampal CA1 VIP interneurons detect novelty in the environment and support recognition memory. Cell Rep. 2024;43(4):114115. doi:10.1016/j.celrep.2024.114115

Understanding and Preventing Baseline Drift in HPLC-ECD

Oct 27, 2025 | HPLC-ECD

Insights and Troubleshooting Tips from 30 Years of Experience

High-performance liquid chromatography with electrochemical detection (HPLC-ECD) generally has one or two of the following detector modes: Amperometric DC, Coulometric DC, and Pulsed Amperometric Detection (PAD). This article focuses on Amperometric DC detection, a constant-potential operation, and explains the causes and countermeasures for HPLC-ECD baseline drift under steady-state conditions. Many of the factors discussed here also apply to Coulometric and PAD systems.

What Is Baseline Drift?

Baseline drift refers to a gradual, one-directional change in the background current of an ECD over tens of minutes to several hours. The baseline represents the current recorded while only the mobile phase is flowing—without any sample injection—and ideally remains stable at a constant steady-state level.

Capacitance and the Initial Response

Between the working and counter electrodes of an ECD cell lies the mobile phase, which acts as an electrolyte and forms an electrochemical capacitor. Immediately after a potential is applied, a transient charging current flows due to the interfacial capacitance of the electrodes.

This initial current is high, then decays rapidly within minutes to an hour and settles to a steady current level, which is a normal phenomenon. Quantitative analysis should begin only after this steady-state condition has been reached. Baseline fluctuations observed after sample injection are often related to this capacitive response as well.

The larger the effective surface area between the working electrode and the mobile phase, the longer it takes to reach equilibrium. In particular, Coulometric detectors—with their large electrode-surface area—may require several to a few days before complete stabilization.

Major Causes of Baseline Drift

Baseline drift in HPLC-ECD can arise from a wide variety of sources. Common contributors, roughly in order of likelihood, include:

Detector temperature
Laboratory room temperature
Mobile phase temperature
Elution of residual sample components from the column
Leaching from packing materials or column housings
Electrical noise or connection issues outside the detector cell
Impurities in the mobile phase (including water quality)
Metal ion leaching from stainless-steel tubing

Temperature Effects and Stabilization Strategies

When the detector lacks active temperature control, baseline drift often correlates strongly with changes in room temperature. Because the mobile phase passes through pump heads and tubing before reaching the detector, its temperature lags behind room temperature changes by a few hours. This phase delay makes temperature-related drift difficult to recognize.

Recommended precautions:

Stabilize the room temperature for at least two hours before starting measurements.
Place the mobile-phase bottles in a water bath or temperature buffer.
Ensure that airflow from air-conditioning vents does not strike the detector directly.

For example, if the laboratory air-conditioning is turned off overnight, immersing the solvent bottles in a large water bath is an effective way to minimize baseline drift.

Drift Originating from the Column or Mobile Phase

Residual sample components or leaching from column materials are also major sources of drift. A simple diagnostic approach is to remove the column temporarily and replace it with a straight union. If the drift disappears, the column or pre-column is the likely cause.

Using columns not recommended by the ECD manufacturer can sometimes introduce small amounts of eluate from the packing material or housing. Even extensive washing may not immediately resolve such issues, and stability is usually restored only after switching to the recommended column type.

When the mobile phase itself is contaminated, the column may act as a temporary filter, adsorbing hydrophobic contaminants and delaying their appearance at the detector. If the baseline suddenly rises when the column is removed, the contamination probably originates from the mobile phase.

Among all contaminants, hydrophobic organic compounds are particularly troublesome because they are first retained by the column and then slowly migrate to the working electrode over time.

Tubing Materials

While tubing contamination is sometimes suspected, it’s rarely the true cause of HPLC-ECD baseline drift. Since the lines are constantly flushed by the mobile phase, any buildup there almost always reflects contamination of the solvent itself. Rarely, if ever, is there a case where tubing contamination alone causes abnormal detector behavior. However, if stainless-steel tubing is used, replacing it with PEEK tubing is recommended. Stainless steel tubing can leach trace metal ions into the mobile phase, which may contribute to drift or noise.

Troubleshooting Case Study: Sensitivity Loss after Changing Methanol Brand

Let me share one case that left a strong impression.

A researcher at a major pharmaceutical company running catecholamine analysis with a focus on dopamine in tissue and blood samples reported a sudden loss of ECD sensitivity. Upon investigation, the baseline current was found to be extremely low—almost zero.

At first, replacing the working electrode restored sensitivity, but after a few days the same issue reappeared. Next, both the electrode and the column were replaced, which stabilized the signal for a week, only for the problem to return again. Clearly, some latent factor was re-emerging over time, which proved difficult to identify.

Further questioning revealed that about a month before the first incident, the laboratory had switched to a different brand of HPLC-grade methanol. This detail sparked a hypothesis: trace hydrophobic organic impurities in the new solvent were being adsorbed by the column, gradually reaching saturation, and eventually migrating to the working electrode surface.

To test this, the research team reverted to the original methanol brand and repeated the analysis. Both drift and sensitivity loss completely vanished, and the problem never recurred. It took nearly two months to isolate the cause, but the case taught an important lesson in troubleshooting basics as described below.

The Fundamentals of Troubleshooting

When trouble occurs, the natural reaction is to rush and try several fixes at once. But doing so makes it impossible to know which change truly affected the outcome, and when the problem returns, nothing has been learned.

At Amuza, we always emphasize a simple principle:
Change one factor at a time, and observe carefully.

Start by listing all possible causes. Then alter the most likely one and observe the result. If nothing changes, restore the original condition and move on to the next candidate. It’s a slow process, but it’s the surest path to understanding. Within this careful repetition lies the very essence of research. Observation, hypothesis, and verification, the fundamentals of science, are all present in troubleshooting. Every difficulty is also an opportunity to deepen your understanding of the system and to refine your own technique and scientific insight.

And of course, if you ever find yourself stuck, our Amuza support team is always ready to help. Drawing on extensive real-world experience, we can guide you toward practical solutions that keep your research moving forward.

Conclusion

Behind every case of baseline drift lie a variety of physical and chemical factors—temperature, materials, solvents, and impurities. Unraveling these complex interactions is part of the true fascination of analytical science. Rather than viewing drift as mere “error,” we can see it as a window into the underlying science. By understanding and troubleshooting HPLC-ECD baseline drift, researchers can ensure more reliable results, and often gain deeper scientific insight.

HPLC-ECD vs. LC-MS/MS: Which Is Best for Neurotransmitter Analysis?

Aug 18, 2025 | HPLC-ECD

Analyzing neurotransmitters in microdialysis or brain tissue samples often comes down to choosing the right analytical technique. Two popular options are HPLC-ECD and LC-MS/MS. Each offers clear advantages depending on your lab’s goals, budget, and detection needs.

Whether you’re building a new workflow or optimizing an existing one, this article walks you through the practical considerations of both systems and how they can complement one another in the same lab.

What is HPLC-ECD?

HPLC-ECD (High-Performance Liquid Chromatography with Electrochemical Detection) is a long-established technique specifically designed to detect electroactive compounds, such as monoamines and their metabolites. It relies on measuring the electrical current generated when these compounds undergo oxidation or reduction reactions at the detector electrode. This electrochemical sensitivity makes HPLC-ECD particularly well-suited for neurotransmitters like dopamine, serotonin, norepinephrine, and related compounds in brain microdialysate or other in vivo and ex vivo samples.

Common Targets

Dopamine (DA)

Serotonin (5-HT)

Norepinephrine (NE)

Adrenaline

Metabolites: DOPAC, HVA, 5-HIAA

Amino acids such as GABA and Glutamate

Key Benefits:

Sub-ng/mL sensitivity for monoamines
Fast run times, as low as 5 minutes for some analytes (typically 15–30 minutes depending on complexity)
Simple sample prep, often only filtration is required
Lower instrument and operating costs compared to mass spec systems
User-friendly interface, making it easier for labs to train new users

Electrochemical detection provides direct measurement of redox-active neurotransmitters without complex derivatization. This results in robust, reproducible quantification well-suited for longitudinal or high-throughput studies. For example, Amuza’s HTEC-600 HPLC-ECD system comes pre-configured with validated methods and optimized hardware to streamline neurotransmitter analysis with minimal setup.

What Is LC-MS/MS?

LC-MS/MS (Liquid Chromatography with Tandem Mass Spectrometry) combines chromatographic separation with mass-based detection, offering exceptional selectivity and sensitivity. This technology measures molecules based on their mass-to-charge (m/z) ratios and allows for highly multiplexed analysis of dozens or even hundreds of compounds in a single run.

LC-MS/MS is ideal for labs requiring:

Precise quantification of diverse analytes
Multiplexed analysis covering neurotransmitters, metabolites, peptides, and small molecules
Differentiation of isomers and structural confirmation of unknown compounds
Analysis of complex biological matrices such as plasma, cerebrospinal fluid (CSF), or brain tissue

Key Advantages:

Analyze broad analyte panels in a single run (20–200+ compounds)
Detect non-electroactive or derivatized compounds that HPLC-ECD cannot measure directly
High quantitative accuracy and low limits of detection (often sub-pg/μL)
Well-suited for discovery and biomarker research

However, LC-MS/MS typically requires more extensive sample preparation, such as protein precipitation, solid-phase extraction (SPE), and sometimes chemical derivatization. Runs are generally longer (15–45 minutes), and the instrument requires skilled operators and regular maintenance.

For a deeper dive into LC-MS/MS workflows for neurotransmitter analysis, see this comprehensive review on PubMed.

Choosing between HPLC-ECD and LC-MS/MS

While LC-MS/MS is often considered the gold standard for comprehensive and multiplexed analyses, HPLC-ECD remains a strong choice for routine neurotransmitter analysis, especially for high-throughput or longitudinal studies.

Consideration	HPLC-ECD	LC-MS/MS
Sensitivity	High (pM / pg/µL range)	Very high (sub-pg/µL with optimization)
Specificity	Excellent for monoamines	Excellent for broad analyte panels
Sample Prep	Simple filtration, optional derivatization	Complex (SPE, derivatization)
Run Time	5–30 minutes	15–45 minutes
Cost per Sample	~$2–$5	~$10–$30
Instrument Cost	~$45k–$80k	~$250k–$450k
Ease of Use	Plug-and-play	Requires technical expertise
Best Use Cases	Targeted, known analytes	Broad, exploratory analysis

Can you use both in the same lab?

Absolutely. Many neuroscience labs use both platforms to complement each other.

Use HPLC-ECD for routine, fast, and cost-effective monitoring of dopamine, serotonin, and norepinephrine in microdialysis or in vivo studies.
Use LC-MS/MS for broad metabolite profiling, unknown peak identification, or when structural confirmation is necessary.
Use HPLC-ECD results to validate or calibrate LC-MS/MS assays and vice versa.

This hybrid approach, using ECD for routine neurotransmitter monitoring and LC-MS/MS for validation, demonstrates how both platforms can add value in translational neuroscience.

Case Study Highlight: Substance Abuse Research

In studies exploring drug self-administration, the Hemby Lab at High Point University used HPLC-ECD to investigate how experimental compounds affect neurotransmitter levels in the brain. Lab manager Scott McIntosh shared:

“The HTEC [ECD] is straightforward for neurotransmitter analysis. Its sensitivity and low downtime made it our go-to for studying dopamine and serotonin during long-term behavioral experiments.”

Importantly, they paired this with LC-MS/MS to confirm compound penetration across the blood–brain barrier, illustrating a powerful, complementary workflow.

This hybrid approach, HPLC-ECD for routine neurotransmitter monitoring and LC-MS for validation, demonstrates how both platforms can add value in translational neuroscience.

When to choose which technique

Choosing between LC-MS/MS and HPLC-ECD depends on your goals, your samples, and your lab’s capabilities.

HPLC-ECD is ideal when:

You need fast, cost-effective monoamine data
Your analytes are electroactive, and even if they’re not, like acetylcholine or certain amino acids, Amuza provides fast and simple derivatization methods to make them detectable via HPLC-ECD.
You want a robust, easy-to-use system that gets up and running quickly, with minimal maintenance and no need for extensive training after purchase.

LC-MS/MS is ideal when:

You need structural confirmation, isomer differentiation, or unknown identification
Your targets include non-electroactive compounds, neuropeptides, or broad panels of metabolites
You have the resources and technical expertise to manage complex instruments and data workflows

Let’s talk through your workflow

At Amuza, we specialize in turnkey HPLC-ECD systems built for neuroscience research, like the HTEC-600, designed to reduce setup time and support reproducibility. We also understand LC-MS/MS and can help you decide which platform or combination fits your lab’s needs today and tomorrow.

Whether you’re comparing platforms or exploring hybrid workflows, we’re here to help.

Contact our team to get started

New Insights in Neuroscience: The Benefits of Wireless EEG Recording in Rodents

Sep 24, 2024 | EEG, Wireless Neuroscience

As researchers delving into complex neurological disorders, sleep studies, and epilepsy models, we understand that the quality of our data directly impacts the validity and depth of our findings. Rodent models, crucial for these investigations, often face challenges that can compromise the accuracy of our recordings. Electroencephalography (EEG) – Overview by Mayo Clinic provides a foundational understanding of traditional EEG systems.

In this article, we will explore how wireless EEG recording addresses the limitations of these systems, focusing on its benefits in enhancing data quality and supporting ethical research practices.

The Limitations of Tethered EEG Systems in Neuroscience Research

In the pursuit of understanding complex neurological phenomena, traditional tethered EEG systems have been instrumental. However, these systems come with inherent limitations that can compromise the quality of research using behaving rodents.

Restricted Movement and Unnatural Behaviors

One of the primary challenges with tethered EEG systems is the restriction they impose on the free movement of rodent subjects. This can lead to unnatural behaviors, as rodents may alter their normal activities to accommodate the constraints of the tether, such as avoiding exploratory activity or social interactions. These deviations from natural behavior can skew the results of studies that rely on understanding normal patterns of activity or behavioral responses.

Increased Stress Levels

The presence of a tethered EEG system can also significantly elevate stress levels in rodents. The weight and constant pulling of the cables can cause anxiety and agitation. This stress is not only detrimental to the well-being of the animals but also muddles the data collected. Stress-induced changes in brain activity can lead to inconsistent or misleading results, particularly in sleep or seizure research.

Physical Interference and Data Artifacts

The cables of traditional tethered systems can act as antennas, picking up external electromagnetic noise and generating artifacts in the recorded EEG signals. Tethered cables can also become kinked or be bumped into objects in the animal’s environment during movement, introducing more artifacts into the data being collected. In studies of sleep architecture or seizure dynamics, where high-resolution and clear data are essential, these artifacts can obscure the true brain activity and make it challenging to distinguish between genuine neural signals and noise.

As researchers seek to advance the understanding of neurological disorders addressing these shortcomings becomes paramount. In the following sections, we will explore how wireless EEG technology provides a solution to these challenges, offering new possibilities for more accurate and humane research using animal models.

How Wireless EEG Devices Address These Challenges

The advent of wireless EEG technology marks a significant breakthrough in overcoming the limitations associated with traditional tethered systems. By eliminating physical connections between the animal and the recording equipment, wireless EEG devices address several critical challenges, enhancing both the quality of the data and the welfare of the subjects.

Minimizing Data Artifacts

In neuroscience research, ensuring the ethical treatment of animals is paramount. Wireless EEG systems offer a significant advantage in adhering to established ethical guidelines, such as those outlined in the NIH’s Guide for the Care and Use of Laboratory Animals. By allowing for greater freedom of movement, these systems reduce the stress animals typically experience in tethered setups, thereby aligning with the 3Rs (Replacement, Reduction, Refinement) principles of ethical research. The reduction in physical restraint not only improves the welfare of research animals but also enhances the quality of data by minimizing stress-induced artifacts. For researchers striving to meet the highest standards of humane treatment, wireless EEG provides a refined approach to data collection that upholds ethical considerations while advancing scientific discovery.

Freedom of Movement

One of the most compelling advantages of wireless EEG systems is their ability to offer rodents greater freedom of movement. Without the constraints of tethered cables, animals can engage in their natural behaviors, such as exploring their environment, socializing with other rodents, and exhibiting normal locomotion. This increased mobility leads to more accurate and representative behavioral data.

For example, in sleep studies, the ability to move freely ensures that sleep patterns are recorded under conditions that closely mimic natural settings, thereby providing more reliable insights into sleep architecture and its disruptions. Meanwhile, in studies of social interactions and group dynamics, wireless EEG systems enable animals to interact freely with their conspecifics, supporting the ethical treatment of animals and providing researchers with richer, more comprehensive data on social behaviors.

Reduced Stress

Stress is a well-documented factor that can impact research outcomes, particularly in studies involving neurological disorders. Tethered systems often induce stress-related behaviors, such as gnawing on wires or frequent escape attempts, which can alter the animal’s physiological state and skew data. Wireless EEG devices significantly reduce these stressors by removing physical constraints. Rodents no longer experience the discomfort or anxiety associated with tethering, leading to a more accurate reflection of their baseline brain activity. This stress reduction is especially crucial in research areas like epilepsy, where stress can exacerbate seizure activity and interfere with the assessment of treatment efficacy.

Ethical Considerations

The adoption of wireless EEG technology aligns with the ethical standards of modern research practices. By reducing stress and enabling natural behavior, wireless systems ensure that research is conducted in a manner that respects the welfare of the animals. This approach helps researchers meet ethical guidelines and regulatory requirements, fostering a more responsible and compassionate research environment.

How Wireless EEG Advantages Benefit Research Areas

Wireless EEG systems are transforming the landscape of neuroscience research by enabling uninterrupted and high-quality data collection. This advancement is particularly beneficial for long-term studies, where consistent and artifact-free recordings are crucial. Let’s explore how wireless EEG systems are unlocking new insights across various research domains.

Neurological Disorders

For studies involving neurological disorders such as Alzheimer’s disease, Parkinson’s disease, and schizophrenia, wireless EEG systems offer significant advantages. These conditions often require prolonged observation to understand the progression and effects of various treatments. Wireless technology allows researchers to gather reliable data over extended periods without the disruptions caused by tethered systems. For example, in Alzheimer’s research, continuous monitoring of brain activity can reveal subtle changes in cognitive function and disease progression. Similarly, in studies of Parkinson’s disease and schizophrenia, uninterrupted data collection helps in assessing motor and cognitive symptoms more accurately, facilitating a better understanding of these complex disorders and the development of effective therapies.

Sleep Research

In sleep research, the ability to monitor natural sleep patterns without the interruptions caused by tethered cables is invaluable. Wireless EEG systems provide seamless recording, allowing researchers to capture true sleep behavior over extended periods. This capability is essential for studying complex sleep disorders such as insomnia, sleep apnea, and narcolepsy. By observing sleep architecture in a more natural state, researchers can gain deeper insights into the mechanisms underlying these disorders and evaluate the effects of potential treatments with greater accuracy.

Epilepsy Research

Continuous monitoring of brain activity is critical for epilepsy research, where the goal is to understand seizure patterns and assess the efficacy of new treatments. Wireless EEG systems facilitate this by providing uninterrupted data collection even during long-term studies. This constant monitoring allows researchers to capture a comprehensive view of seizure events, including their frequency, duration, and progression. With the ability to record without physical constraints, researchers can more accurately identify patterns and triggers of seizures, evaluate the impact of therapeutic interventions, and refine treatment strategies for better management of epilepsy.

Introducing the ELG-2 Datalogger as a Solution

As we’ve explored, the transition from tethered to wireless EEG systems offers numerous advantages for enhancing research accuracy and improving animal welfare. One standout example of this advanced technology is the ELG-2 Datalogger, a cutting-edge wireless EEG device designed to address the limitations of traditional systems and meet the evolving needs of modern neuroscience research.

Key Features of the ELG-2 Datalogger

Lightweight Design: The ELG-2 Datalogger is engineered with a lightweight design, weighing as little as 2 grams. This minimal weight ensures that even small animals, such as mice, can wear the device comfortably without interference with their natural behaviors. The reduced burden on the animal enhances its comfort and allows for more accurate behavioral observations.
Artifact-Free Data Collection: The ELG-2 Datalogger features a well-shielded headstage with an internal amplifier, which effectively minimizes the 60 Hz noise commonly associated with other systems. This advanced shielding ensures high-quality, artifact-free data collection, leading to more reliable research outcomes.
Extended Battery Life: Long-term studies often require uninterrupted data collection, and the ELG-2 Datalogger excels in this area with its extended battery life. The device offers up to 26 hours of battery life for mice and up to 70 hours for rats. This extended battery capability reduces the frequency of battery changes, allowing for less intrusive adjustments and minimizing disruptions to the animal’s environment.
Compatibility with Various Research Environments: The ELG-2 Datalogger is designed to integrate seamlessly into various research settings. It operates wirelessly and is compatible with a range of cages, racks, and experimental environments. Its universal connector allows for customization to fit different electrode setups, making it a versatile tool for diverse research applications.

Conclusion: Advancing Neuroscience with Wireless EEG Technology

Wireless EEG technology has transformed the landscape of neuroscience research, offering significant improvements in data quality, animal welfare, and research outcomes. By eliminating the physical constraints of tethered systems, wireless devices like the ELG-2 Datalogger, enable more natural behavior in rodent models, reducing stress and producing clearer, artifact-free data.

Key benefits include:

Improved Data Quality: With reduced interference and artifacts, wireless systems provide clearer, more reliable EEG recordings.
Natural Behavior and Better Insights: Freedom from tethers allows rodents to move and interact naturally, leading to more authentic and representative behavioral data.
Enhanced Animal Welfare: By minimizing stress, wireless EEG aligns research practices with modern ethical standards.

The ELG-2 Datalogger exemplifies these advantages. Its lightweight design, extended battery life, and compatibility with various research environments make it an essential tool for studies involving neurological disorders, sleep, and epilepsy. By adopting wireless EEG technology, researchers can gain new insights that were previously constrained by traditional systems, fostering more humane and accurate scientific exploration.

As you look to advance your research, consider how wireless EEG solutions like the ELG-2 Datalogger can elevate the quality, scope, and ethical standards of your work.

Ready to elevate your neuroscience research with wireless EEG?

Request a online demo

Understanding the Revolutionary Impact of Tissue Clearing for 3D Imaging-Based Research

Aug 28, 2024 | Tissue Clearing

I. Introduction

Tissue clearing and three-dimensional (3D) imaging have become indispensable tools in biological research, offering insights into complex structures, innervation, vasculature, and protein expression in various types of tissue. Tissue clearing addresses the opacity of biological tissues, which hinders the ability to achieve clear and detailed images, by replacing lipids in the tissue with agents with homogenized refractive indices. The result is transparent tissue with preserved morphology and protein localization in 3D space.

One method emerging above traditional clearing techniques is Binaree® Tissue Clearing Rapid™, which uses non-hazardous and easily disposable aqueous solutions to clear tissue faster without compromising tissue or fluorescence integrity. Here, we will explore some of the science behind tissue clearing and the various methods used to achieve it, how the tool transforms research across multiple disciplines, and how Binaree is establishing itself as the foremost choice for tissue clearing projects.

b51f4d_57bcb55031a94ae5977f0e0ce70f30a4~mv2

II. The Science Behind Tissue Clearing

A. Optical Properties of Biological Tissues

Biological tissues are composed of various elements, including cells, extracellular matrix, and lipids, all of which have different refractive indices. This variation causes light to scatter as it passes through the tissue, resulting in opacity. The extent of light scattering is influenced by factors such as the size and shape of cellular structures, the composition of lipids and proteins, and the presence of pigments or other light-absorbing substances.

B. Mechanisms of Tissue Clearing

Tissue clearing aims to reduce light scattering by homogenizing the refractive index within the tissue. This is typically achieved through a combination of removing lipids, the major element scattering light, and introducing a mounting agent in their place that matches the refractive index of the remaining tissue components, allowing light to pass through with minimal scattering. The result is transparent tissue that can be imaged in 3D with high resolution, with more focus on deeper components of the tissue rather than superficial surfaces.

III. Tissue Clearing Applications

A. Neuroscience

In neuroscience, tissue clearing has advanced the study of the nervous system’s circuitry and protein-driven cellular interactions. By making tissue such as the brain transparent, researchers can visualize and map pathways and brain region cross-talk without the need for tedious sectioning and image stitching. This has significant implications for accelerating our understanding of debilitating neurological diseases, and for amplifying the development of targeted therapeutics.

B. Developmental Biology

Tissue clearing is also widely used in developmental biology to study the growth and formation of tissue in embryonic and neonatal developmental stages. By imaging cleared embryos in animal models, scientists can observe the spatial relationships and interactions between different cell types and track their changes over time. Tissue clearing helps developmental biologists in identifying the mechanisms that drive normal and pathological development, and uncovering the causes of developmental disorders.

C. Cancer Research

Oncology benefits from the detailed examination of tumor microenvironments afforded by tissue clearing. By clearing and imaging entire tumors, researchers can study the interactions between cancer cells and their surrounding tissues, gaining a better understanding of how tumors grow, spread, and respond to oncolytic treatments. This knowledge is crucial for developing more effective cancer therapies.

IV. Methods of Tissue Clearing

A. Traditional Chemical-Based Clearing

Several chemical-based clearing methods have been developed over the years, each with its own advantages and limitations. Some of the traditional techniques include CLARITY, CUBIC, and iDisco, which use hydrogel, aqueous chemicals, or organic solvents respectively to clear tissue with varying clearing speed, cost, safety, and success in maintaining tissue structure and marker fluorescence.

B. Binaree: The Emerging Tissue Clearing Frontrunner

As researchers seek to improve the efficiency and effectiveness of the tissue clearing process, Binaree® Tissue Clearing Rapid™ has emerged to address concerns surrounding traditional tissue clearing methods. Binaree Rapid combines electrophoresis with mild chemical treatment to rapidly clear tissue while preserving morphology and fluorescence, and avoids the use of heat or organic solvents. By passing a current through an electrophoresis chamber, the Rapid system pulls ionized clearing agents through tissue. Binaree is particularly effective for clearing mouse brains in just 6 to 8 hours, and permeabilizes tissue for more effective and deeper immunostaining after the clearing step.

Binaree also offers options for passive clearing without electrophoresis, a method more familiar for seasoned researchers who have incubated tissue with traditional clearing techniques in the past.

18832b_0208ac23ef6e451698e959ce394058e7~mv2_d_2480_3508_s_4_2

V. The Future of Tissue Clearing and 3D Imaging

A. Advancements in Imaging Technology

As tissue clearing techniques continue to evolve, so too do the imaging technologies that complement them. Advances in light-sheet, confocal, and multiphoton microscopy have greatly enhanced the ability to capture high-resolution 3D images of cleared tissue. These technologies allow researchers to visualize large volumes of tissue more efficiently, helping preserve fluorescence signals and reducing background noise, leading to more consistent data when studying dynamic biological processes.

B. Broader Applications and Accessibility

As tissue clearing techniques become more refined and accessible, their applications are likely to expand beyond traditional research settings. For example, tissue clearing could be used in clinical diagnostics to provide more detailed analyses of biopsies, or in drug development to study the effects of new treatments on whole organs. The continued development of user-friendly, cost-effective clearing tools like Binaree will make this technology more accessible to a wider range of laboratories and researchers.

VI. Conclusion

The field of tissue clearing has made significant strides in recent years, transforming the way researchers approach 3D imaging. By overcoming the natural opacity of biological tissues, tissue clearing techniques have enabled scientists to visualize and study complex biological structures in unprecedented detail. Whether in neuroscience, developmental biology, or cancer research, tissue clearing has become an essential tool for advancing our understanding of the natural world.

Among the various methods available, Binaree Tissue Clearing Rapid™ offers a compelling solution for researchers looking to achieve fast, reliable, and high-quality tissue transparency. Its ease of use and effectiveness make it a valuable asset for laboratories focused on cutting-edge 3D imaging research.

As tissue clearing technologies continue to advance, researchers can look forward to even greater clarity and precision in their imaging, leading to new discoveries and innovations in the life sciences.

Interested in seeing how Binaree® can enhance your research?

Request a Demo!

Optimizing behavioral experiments: Key factors affecting reliable results

Dec 1, 2023 | Behavioral Tests

Conducting behavioral experiments, including operant conditioning tasks and behavioral assays, requires careful consideration of multiple factors to ensure reliable and reproducible results. In addition to experimental manipulations like genetic alterations and drug administration, researchers must address five critical factors influencing animal behavior studies. Understanding and managing these factors can significantly enhance the validity and reproducibility of your animal model studies. Here, we’ll explore each of these factors and provide insights on how to effectively manage them.

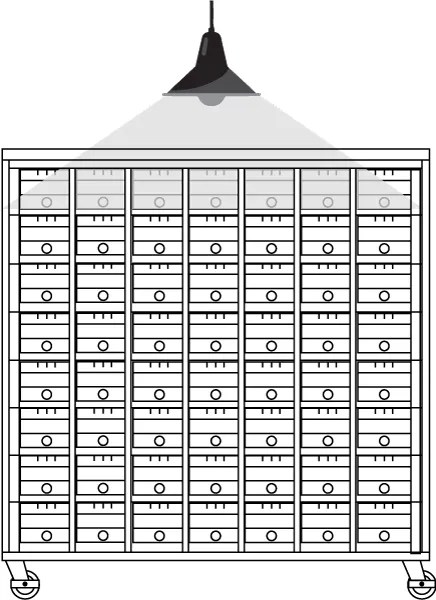

Manage the environment for enhanced habituation in behavior studies

The success of behavioral experiments is heavily influenced by environmental conditions. Adhering to international standards for cage size, room temperature, humidity, food, water, and bedding replacement is crucial. For example, variations in lighting environments within cage racks can impact experimental results. Researchers should carefully record and control the location of animals within the rack, especially in relation to lighting. Environmental noise, such as ventilation systems, also plays a role, requiring researchers to understand and manage differences between living and experimental areas used for behavioral testing. Ideally, the experimental environment should closely match the home cage environment, although this is not always practical.

Handle animals appropriately to minimize stress

Regular handling of laboratory animals is common practice, but behavioral investigators must take extra precaution. Habituating the animals to the investigator by handling animals daily, starting at least a week before the experiment, can mitigate unnecessary anxiety and fear and ensure more accurate data. During transitions from cages to experimental settings, gentle and prompt handling is vital. Avoiding chasing, grabbing, and minimizing midair hanging by tails is essential for maintaining the well-being and reliable behavior of the animals.

Pre-experiment episodes and waiting periods

Introducing a holding area and a specified waiting time before the experiment can reduce data variability. This strategy ensures uniformity in the episodes leading up to the experiment for all animals. The holding area, secluded from the investigator’s view, should offer a quiet environment with consistent lighting to avoid disrupting the animals. Transferring the animals from the home cage environment to the experimental environment can be stressful. Allowing at least 30 minutes in the holding area helps animals acclimate after room transfer. This structured approach contributes to more consistent and reliable behavioral outcomes.

Timely execution of experiments

Consistency in the timing of experiments is crucial, especially for studies conducted over multiple days or involving repeated training sessions. This is particularly important as many investigators run behavioral assays during the animal’s dark (night) cycle, maintaining the same schedule each day will minimize disruptions to the animal’s sleep and increase the consistency of their performance on a given task. Following a rigid experimental schedule helps maintain stability and reduces potential confounding variables, contributing to the accuracy and reproducibility of results.

Maintaining consistent experimental Conditions

Acute attention to experimental conditions is also imperative. Aim to keep variables such as temperature, humidity, sound, and light consistent. Many research labs can be noisy environments, so it is important to consider the use of soundproofing solutions, such as soundproof boxes or rooms, to minimize external influences. However, be mindful of creating environments that are too silent, as this can induce unnecessary anxiety. Background sounds similar to the animals’ normal environment can help balance control and ecological validity.

By addressing these five key factors, researchers can optimize the well-being of their animals and conditions of their behavioral experiments, leading to more reliable, valid, and reproducible outcomes in animal model studies.

If you would like to download these factors in a convenient application note format or learn more about behavioral neuroscience techniques such as fiber photometry, optogenetics, and wireless EEG recording, explore our wireless neuroscience systems and educational resources.

How to set up an open field test for animal behavior research

Nov 21, 2023 | Behavioral Tests

If you are interested in studying the emotional or motor activities of animals, such as anxiety, exploration, or locomotion, you might want to consider using an open field test. This is a simple and widely used method that involves placing an animal in a large, empty box and observing its behavior. In this blog post, we will give you some tips on how to choose the right dimensions, materials, and light conditions for your open field test.

Open field testing is often used alongside other behavioral assays, including operant conditioning tasks and cognitive testing paradigms.

Dimensions

The size of the experimental box should be large enough to allow the animal to move freely and explore the environment, but not so large that it becomes stressful or overwhelming. The box should also be higher than the home cage to prevent the animal from escaping.

For mice, a suitable box size is at least 400 x 400 x 300 (h) mm, but you can also use a larger box, such as a 500 x 500 x 300 (h) mm box, which is ideal for open-field tests in mice. For rats, the standard box size is 900 x 900 x 500 (h) mm, but you can also use a smaller box, as long as it is larger than 600 x 600 x 500 (h) mm.

Quick reference: recommended open field arena sizes

Species	Recommended arena size	Wall height
Mouse	400–500 mm square	≥300 mm
Rat	600–900 mm square	≥500 mm

Materials

The inner walls and floor of the box should have a matte finish to reduce light reflection and glare, which can affect the animal’s vision and behavior. The box should also have a non-slippery surface to provide adequate grip for the animal and prevent falling or sliding.

While some animals may prefer wood floors and show more activity on them, wood is not a good material for open field tests because it can absorb odors and germs and cannot be easily cleaned or disinfected. Therefore, we recommend using plastic or metal boxes that can be sanitized after each use.

Another factor to consider is the transparency of the box walls. Some researchers may prefer transparent walls to observe the animal better, but this can also expose the animal to external visual stimuli, such as the experimenter, other animals, or objects, which can influence its behavior. Therefore, we recommend using opaque walls or covering the transparent walls with curtains or screens to create a more isolated and controlled environment. We also suggest using matte light gray walls and floors, as this color can help the animal acclimate faster to the new setting.

Light conditions

The amount and quality of light in the box can also affect the animal’s behavior. Generally, animals tend to be more active and exploratory in dimmer light conditions, as they feel less exposed and threatened. In contrast, brighter light conditions can induce more anxiety and inhibition in the animal, as they feel more vulnerable and exposed.

In recent years, some researchers have reduced the light intensity in their open field tests to less than 10 lux, which is equivalent to a dark room with a faint light source. They have found that this low light level can increase the animal’s movement and exploration, compared to the traditional 50 to 200 lux, which is equivalent to a well-lit room or a cloudy day.

However, it is important to ensure that the light is evenly distributed in the box, as any contrast between light and dark areas can create a preference for the dark areas, where the animal feels more secure and hidden. To achieve uniform illumination, we recommend using LED light panels with dimming functions that can be placed on top of the box. This method can also allow you to adjust the light intensity according to your experimental needs.

Key recommendation

Maintain consistent light levels across all test sessions. Uneven illumination can influence exploration patterns and affect reproducibility.

Sound environment

One of the challenges of conducting an open field test is to control the background noise in the room where you perform the experiment. Noise can interfere with the animal’s behavior and affect their responses. For example, sudden or loud noises can startle them and make them more anxious or less active.

To avoid this problem, you need to create a consistent and neutral sound environment that masks other noises in the room. One option is to use a white noise generator that produces a constant and uniform sound of 60 decibels. This can help to reduce the variability and unpredictability of the noise level and create a more stable and calm atmosphere for your animal subjects.

However, if you cannot provide the same sound environment every day, or if there are other sources of noise that you cannot eliminate, you may need to use a soundproof box or place the experimental box in a soundproof room. This can help to isolate your animal subjects from any external noise and ensure a more controlled and quiet environment for your experiment.

Key recommendation

Use consistent background noise or sound isolation throughout the study to minimize stress-related behavioral variability.

Experiment duration

Another factor that you need to consider is how long you should run your open field test. The duration of the test can affect the quality and quantity of your data, as well as the welfare and comfort of your animal subjects.

Some older papers suggest that an open field test should last for 5 minutes, but this may not be enough to capture the full range of your animal’s behavior and activity. More recent studies have shown that movement often increases after the first 5 minutes, as your animal subjects become more familiar and comfortable with the environment. Therefore, it is recommended that you extend your open field test to at least 10 minutes to allow for more exploration and adaptation.

However, if you want to measure more long-term effects or changes in your animal subjects’ behavior and activity, you may need to run your open field test for longer periods, such as 2 hours. This can help you to observe how your animal subjects respond to prolonged or repeated exposure to the same environment, and how they develop habits or preferences over time.

But remember, the longer you run your open field test, the more you need to take care of the animal’s well-being and comfort. You need to provide them with adequate food, water, and bedding, and monitor them for any signs of stress, fatigue, or injury. You also need to ensure that the temperature and humidity of the room are appropriate and consistent.

Experimental protocol

To start the test, you need to place the animal in a specific spot in the box and let it roam freely for a certain amount of time. It is important to be consistent and use the same spot and posture for all animals, so you can compare their results fairly. A good spot to use is near the wall, because animals that are nervous or anxious tend to stay close to the edges, while those that are more confident or adventurous venture into the center.

As the animal explores the box, you can observe and record various aspects of its behavior, such as how much it moves, how often it turns, how long it stays still (freezing), and how many times it stands up on its hind legs(rearing). These indicators can tell you a lot about the animal’s emotional state, curiosity, and motivation. For example, animals that move a lot, turn frequently, and rear often are usually more active, alert, and interested in their surroundings, while animals that move little, turn rarely, and rear less often are usually more passive, calm, and cautious which may indicate an anxiety-like state.

To increase the accuracy and convenience of data analysis, you can use a more advanced Open Field system, which automatically measures and analyzes the animal’s behavior using image processing and/or infrared beams. This approach also allows for automatic detection of rearing. However, keep in mind that different researchers may have different interpretations of what these behaviors mean, so you should always focus on the changes in the frequency and duration of these behaviors, rather than their absolute values. Many researchers now use automated behavioral testing systems to reduce observer bias and improve reproducibility.

After the test is over, you need to remove the animal from the box as quickly as possible to avoid stressing it or affecting its behavior. You also need to clean and disinfect the box before testing the next animal. This is to prevent any contamination or odor that could influence the animal’s behavior. If you are using mice, especially the C57/B6 strain, you should avoid using alcohol to disinfect the box, because they are very sensitive to it. You should wait until the alcohol evaporates completely, or use a different disinfectant, before testing the next mouse.

Looking for an automated open field testing system?

Manual scoring can be time-consuming and introduce variability between researchers.

Modern open field systems use automated tracking and behavioral analysis to measure locomotion, zone preference, rearing activity, and other behavioral endpoints with improved consistency and efficiency.

Explore automated behavioral testing systems for open field, operant conditioning, and cognitive research.

Explore behavioral testing systems

Improve reproducibility in behavioral research

Open field testing remains one of the most widely used behavioral assays in neuroscience. By carefully controlling environmental conditions, lighting, sound, handling procedures, and data collection methods, researchers can improve consistency and confidence in their results.

Many researchers combine behavioral testing with complementary techniques such as fiber photometry, wireless optogenetics, and wireless EEG to better understand the neural mechanisms underlying behavior.

Explore our behavioral neuroscience solutions or contact our team to discuss your application.

Frequently Asked Questions

How large should an open field arena be for mice?

A typical open field arena for mice is between 400 mm and 500 mm square, with wall heights of at least 300 mm.

How long should an open field test last?

Many studies use 10-minute sessions, although longer durations may be appropriate depending on the experimental goals.

What behaviors are measured in an open field test?

Common measurements include locomotion, rearing, freezing behavior, center-zone activity, and overall exploration.

What lighting should be used for an open field test?

Researchers often use dim, evenly distributed lighting to minimize stress and encourage exploration.

Fiber Photometry: An Introductory Guide to This Revolutionary Technique, Part 3

Nov 7, 2023 | Fiber Photometry

In part two of this series, we introduced all of the technical components needed to successfully perform Fiber Photometry and collect reliable, accurate data. In part three, we will briefly discuss innovations in Fiber Photometry hardware and the wireless TeleFipho system.

Part 3: Embracing Innovation: Wireless Fiber Photometry

Advancing research techniques is a cornerstone of all scientific pursuits, leading to groundbreaking discoveries, as new tools allow researchers to clear hurdles that were previously thought as insurmountable. In the field of neuroscience, a more complete understanding of the relationship between neural activity and behavior remains a key goal. The challenging part of this endeavor is creating an experimental environment that closely replicates the natural environment of research subjects. Despite Fiber Photometry representing a significant leap forward in understanding how neural activity and behavior are linked, most conventional systems come with the limitation of being tethered, leading to a few drawbacks. When animals are connected to a tethered system, it limits their freedom of movement which can impede completion of a behavioral task and make interpretation of results difficult. Additionally, tethered Fiber Photometry systems are subject to noise due to the movement of the cable itself. Another issue facing tethered systems is the need for chaining multiple optical fibers together using connectors, with each joint, the light intensity weakens which therefore requires a complex and expensive light source. Therefore, these features can limit experimental design and reduce the accuracy of recorded data. Advancements in wireless technology have allowed for the design of wireless Fiber Photometry systems which eliminate some of the issues inherent to using tethered systems.

Now, we will briefly introduce the TeleFipho Wireless Fiber Photometry System—an innovation to Fiber Photometry that allows real-time identification of neuronal activity in free-moving animals.

Introducing the TeleFipho System

In TeleFipho, all the essential fiber photometry components – from the light source to photodetectors and optical filters – are integrated into a lightweight compact headstage. This wireless headstage communicates seamlessly with a base station via radio waves. The base station is easily connected to a PC for quick and accessible data acquisition. This wireless setup permits research animals to move unrestrictedly, navigate tunnels, and doorways, and even engage in social interactions.

Benefits of Wireless Fiber Photometry

By mounting the headstage directly onto fiber optic cannulas and eliminating the need for long optical cables that can introduce noise and attenuate signal strength, the TeleFipho system simplifies the light path and can achieve unprecedented precision in detecting changes in fluorescence. This means that the data collected is not only more accurate but also provides a clearer window into the intricacies of how neural activity encodes behavior.

Working with data from a system like TeleFipho Wireless Fiber Photometry is made easy by removing the cable, which eliminates motion artifacts caused by rotary joints and long flexible waveguides. This means that you won’t have to process your data to correct for these artifacts.
TeleFipho software provides a real-time view of the data, allowing you to optimize light levels and detection sensitivity quickly. Timestamps and notes can be added manually to the data, or you can connect your behavioral equipment’s outputs to TeleFipho and automatically align behavioral events with the fluorescence data.

In essence, the wireless capabilities of TeleFipho not only represent a leap forward in technological innovation but also mark a significant advance in the way behavioral neuroscience experiments are conducted. By enabling subjects to move freely, researchers can now explore neural activity in a context that more closely mirrors real-life scenarios. This advancement is poised to unlock new insights and pave the way for a deeper understanding of the intricate interplay between neural function and behavior.

If you missed part one or part two of this series make sure to check them out. Additionally, if you would like a more in-depth review of the TeleFipho Wireless Photometry System take a look at our comprehensive Wireless Photometry eBook.

Dowload eBook

Fiber Photometry: An Introductory Guide to This Revolutionary Technique, Part 2

Oct 31, 2023 | Fiber Photometry, Wireless Neuroscience

In part one of this series, we introduced the fundamental concepts of Fiber Photometry and discussed how this revolutionary technique is advancing the field of neuroscience. In part two, we will transition into discussing the inner workings of Fiber Photometry and how the process works on a technical level.

Part 2: How Does Fiber Photometry Work?

Understanding the Components

To better understand how Fiber Photometry allows researchers to record neural activity in real time, it is first important to break the typical Fiber Photometry system down into its individual components. From the hardware of the optical components, the surgical implantation of cannulae, and the software based data analysis, these must all come together in order to produce quality data. There are 4 key components for a working Fiber Photometry system, each of which will be discussed briefly below:

1. Light Source

The choice of light source is pivotal in ensuring accurate and reliable fiber photometry measurements. It must emit a precise wavelength of light that matches the excitation spectrum of the fluorescent indicator being used. Additionally, considerations for light intensity and stability are crucial. A stable and well-calibrated light source guarantees consistent excitation, which directly impacts the quality and reliability of the recorded signals. Advanced light sources may also offer modulation capabilities, enabling researchers to perform more sophisticated experiments by synchronizing light pulses with specific events or behaviors.

2. Optical Fiber

The optical fiber acts as the conduit through which the excitation light travels from the source to the target area within the brain. It must be carefully selected based on factors such as numerical aperture, core diameter, and material composition. A higher numerical aperture allows for better light-gathering efficiency, while a larger core diameter permits more flexibility in positioning the fiber. Additionally, specialized coatings can enhance the fiber’s durability and protect against potential damage during implantation or use. Researchers must also consider factors like numerical aperture matching with the collection optics and the compatibility with chosen light sources.

3. Photodetector

The photodetector is responsible for capturing the emitted fluorescent signals from the neural tissue. It must be highly sensitive to the specific wavelengths emitted by the fluorescent indicator. Additionally, factors like quantum efficiency, noise levels, and dynamic range are critical considerations. A high quantum efficiency ensures that a larger proportion of emitted photons are converted into electrical signals, enhancing the detector’s sensitivity. Low noise levels are crucial for detecting weak signals amidst background noise, while a wide dynamic range allows for accurate recording of both strong and weak signals without saturation or loss of resolution.

4. Fluorescent Indicator

Genetically encoded fluorescent indicators are the cornerstone of fiber photometry. These indicators are typically proteins engineered to fluoresce in response to changes in calcium ion or neurotransmitter concentrations, providing a direct readout of neuronal activity. Choosing the right indicator is a crucial decision, as it determines the sensitivity and specificity of the measurements. Factors to consider include the indicator’s excitation and emission spectra, its target affinity and kinetics, as well as potential interactions with other cellular processes (Shen et.al. 2020). Additionally, researchers must ensure that the chosen indicator is compatible with the chosen excitation wavelength and photodetector.

Expression of Genetic Sensors

Advances in genetic engineering have been hand in hand with advances in imaging techniques. As such, researchers are now able to express complex fluorescent protein structures in a highly efficient cell type specific manner, allowing for unprecedented specificity when collecting neural activity data. Achieving success in fiber photometry relies heavily on obtaining optimal expression of genetically encoded fluorescent indicators (GEFIs) within your selected animal model. This critical step determines the quality and reliability of the fluorescent signals that will be measured, ultimately influencing the accuracy of the neural activity data obtained. Now we will briefly discuss the two primary methods for achieving optimal GEFI expression: viral expression and transgenic mouse models.

Day-Cooney et al., (2023) J.Neurochemistry.

Viral Expression: One approach to achieve targeted GEFI expression involves viral expression, a technique that involves injecting a specially engineered virus carrying the genetic code for the desired GEFI directly into the brain. This method offers the advantage of precision, allowing researchers to target specific cell types or regions within the brain for GEFI expression. However, the effectiveness of viral expression hinges on a critical consideration: virus selection. Different types of viruses are commonly used in neuroscience research, each with specific characteristics that make them valuable tools for manipulating and studying neural circuits. Adeno-Associated Viruses (AAVs) are widely employed due to their efficiency in transducing neurons without causing significant damage. While lentiviruses are useful for studies requiring prolonged expression of genetic constructs as they can integrate their genetic material into the host genome. Additionally, Retrograde Rabies Viruses have gained significant attention in recent years (Osakada et al. 2011). These modified viruses are particularly valuable for tracing neuronal pathways. By introducing a genetically engineered rabies virus into a specific target area, researchers can trace its path backward to identify the upstream neurons that project to that region. This technique provides crucial insights into the connectivity and communication between different brain regions, offering a powerful tool for mapping neural circuits. Finally, achieving the desired level of expression requires careful consideration of virus dilution. Dilution significantly influences the balance between optimal GEFI expression and potential drawbacks such as background noise or over-expression, which can result in inaccurate data interpretation. Researchers must carefully fine-tune the concentration of the injected virus to strike the right balance between signal intensity and stability in order to collect reliable neural activity data.
Transgenic Mouse Models: Another effective strategy involves utilizing transgenic mouse models. These models are genetically engineered to express GEFIs uniformly across the entire brain or in specific brain regions. This approach offers versatility and convenience, as it eliminates the need for viral injections and allows researchers to explore neural activity across multiple brain areas simultaneously. However, it’s important to note that transgenic models may have variations in GEFI expression levels between different brain regions. Researchers must account for these potential differences when analyzing the data and drawing conclusions about neural circuitry and behavior. Furthermore, the choice of transgenic mouse model is a critical aspect of the experimental design. Different lines may have distinct patterns of GEFI expression, allowing researchers to select models that align with the specific brain regions or cell populations under investigation. Additionally, advancements in genetic engineering techniques have enabled the development of more sophisticated transgenic models, including those that allow for cell-type-specific expression of GEFIs. These models provide an even higher level of specificity, allowing researchers to target specific neuronal populations with precision.

Implanting the Optical Cannula

In fiber photometry, successful expression of GEFIs represents a critical step, laying the foundation for the subsequent implantation of an optical cannula. This step is of paramount importance as it provides access to the fluorescent signal emitting from specific regions of interest within the brain. Optical cannulas are instrumental in this process, capturing the emitted light and conveying it to a photodetector for subsequent analysis. Their compact design serves to minimize tissue disruption and damage during the implantation, preserving the neural tissue’s integrity.

The significance of mitigating tissue damage and inflammation during the implantation process is crucial in neuroscience research, particularly in techniques like fiber photometry. Inflammation and tissue trauma can trigger a cascade of unintended physiological responses, including immune activation and the release of signaling molecules that have the potential to impact neighboring cells and brain regions. This phenomenon introduces unwanted signals and noise into the recorded data, complicating the task of accurately interpreting the neural activity of interest. Therefore, attention to detail and precision in the implantation of optical cannulas are imperative to uphold the integrity of the experimental system. Things to consider are locating precise stereotaxic coordinates, using fine tip micropipettes for injection, slow and controlled placement of the injection needle and injection rate, controlled viral delivery using a pneumatic pump, minimizing total volume injected, and implementing a post-injection wait period. This diligence ensures minimal tissue damage ensuring that subsequent fiber photometry measurements yield precise, reliable insights into neural dynamics. Join us for part 3, where we will discuss novel approaches and recent innovations in the realm of Fiber Photometry.

If you missed Part 1 of this introduction to Fiber Photometry take a look here. Learn more about Amuza’s cutting-edge Wireless Fiber Photometry system, TeleFipho.

Learn more about Amuza’s cutting-edge Wireless Fiber Photometry system, TeleFipho.

Learn More

References

Shen et al., (2020) ‘Engineering genetically encoded fluorescent indicators for imaging of neuronal activity: progress and prospects’, Neurosci. Res., 152, pp. 3-14. doi: 10.1016/j.neures.2020.01.01

Osakada et al., (2011) ‘New rabies virus variants for monitoring and manipulating activity and gene expression in defined neural circuits’, Neuron, Aug 25;71(4):617-31. doi: 10.1016/j.neuron.2011.07.005.

Day-Cooney et al., (2023) Genetically encoded fluorescent sensors for imaging neuronal dynamics in vivo. J. Neurochemistry, 164, 284–308. Available from: https://doi.org/10.1111/jnc.15608

Fiber Photometry: A Complete Guide for Neuroscience Research

Oct 20, 2023 | Fiber Photometry

Fiber photometry has rapidly become one of the most widely adopted techniques for measuring neural activity during behavioral experiments. By allowing researchers to monitor fluorescent signals from genetically targeted neural populations in real time, fiber photometry has helped advance the study of neural circuits, neurotransmitter dynamics, and behavior in freely moving animals.

Compared to traditional imaging approaches, fiber photometry offers a relatively accessible and flexible method for recording neural activity across a wide range of experimental conditions. The technique has become especially valuable in behavioral neuroscience, addiction research, learning and memory studies, social interaction experiments, and closed-loop neuroscience applications.

In this guide, we will explore the fundamentals of fiber photometry, how the technology works, the core system components involved, common challenges associated with traditional tethered systems, and how wireless fiber photometry platforms such as TeleFipho are helping simplify experimental workflows.

What Is Fiber Photometry?

Genetically encoded fluorescent sensors allow researchers to measure neural activity and signaling dynamics in vivo during behavioral experiments.

Fiber photometry is an optical recording technique used to measure fluorescence changes associated with neural activity in vivo. The technique relies on genetically encoded fluorescent indicators that respond to intracellular calcium activity or neurotransmitter release, allowing researchers to monitor neural dynamics in real time.

Unlike electrophysiology, which records electrical activity directly from individual neurons, fiber photometry measures bulk fluorescence signals from populations of neurons expressing fluorescent sensors. This provides researchers with a powerful way to study neural circuit activity during behavioral experiments while targeting specific cell populations.

The development of genetically encoded calcium indicators such as GCaMP significantly accelerated the adoption of fiber photometry in neuroscience research. In addition to calcium imaging, fluorescent neurotransmitter sensors are now commonly used to study dopamine, serotonin, glutamate, and other signaling molecules during behavior. Researchers may also combine these approaches with techniques such as microdialysis and HPLC-ECD neurotransmitter analysis, depending on the goals of the experiment.

Fiber photometry has become widely used across neuroscience due to its flexibility, relatively streamlined implementation, and compatibility with freely moving behavioral paradigms.

Understanding Neural Activity Through Calcium Imaging

Calcium ions play a critical role in neuronal signaling and synaptic activity. Through calcium imaging techniques such as fiber photometry, researchers can visualize and quantify changes in intracellular calcium levels that correlate with neural activity.

This approach enables researchers to:

Monitor neural population dynamics in real time
Study neural activity during behavioral tasks
Target genetically defined neuronal populations
Synchronize neural recordings with behavioral events
Measure neurotransmitter dynamics in vivo

The integration of fluorescent calcium and neurotransmitter sensors into neuroscience research has significantly expanded our understanding of neural circuitry and behavior.

Advantages of Fiber Photometry

Compared to traditional imaging techniques, fiber photometry offers several practical advantages for neuroscience laboratories.

Implanted Optical Cannula

Fiber photometry uses an implanted optical cannula to capture fluorescence signals from targeted brain regions without requiring detailed imaging of individual cells.

Simplified Experimental Workflow

Compared to more complex imaging systems, fiber photometry offers a relatively accessible setup and streamlined data acquisition workflow for many laboratories.

Behavioral Flexibility

Fiber photometry is well-suited for behavioral experiments involving freely moving animals, exploratory tasks, reward studies, and long-duration recordings.

Cell-Type Specificity

Genetically encoded fluorescent indicators allow researchers to target specific neuronal populations, glial cells, or neurotransmitter systems.

Multi-Region Applications

Fiber photometry can also support multi-region recordings for studying communication between neural circuits during behavior.

How Fiber Photometry Works

Fiber photometry systems operate by delivering excitation light into the brain through an implanted optical fiber. Fluorescent indicators expressed in neural tissue absorb this excitation light and emit fluorescence at a different wavelength.

The emitted fluorescence is then collected through the optical pathway and measured by a photodetector. Changes in fluorescence intensity are used as an indirect measure of neural activity.

Telefipho Fiber Photometry gCaMP signal graph

Simplified overview of a typical fiber photometry optical pathway used to excite fluorescent indicators and detect emitted signals.

To generate reliable data, multiple components must work together effectively:

Light source
Optical fiber
Photodetector
Fluorescent indicators
Data acquisition software

Each component plays an important role in determining signal quality and experimental reliability.

Key Components of a Fiber Photometry System

Light Source

The light source provides excitation light that matches the excitation spectrum of the fluorescent indicator being used. Stable excitation intensity is essential for maintaining reliable fluorescence measurements.

Advanced systems may also support modulation and synchronization capabilities for more complex experimental paradigms.

Optical Fiber

The optical fiber delivers excitation light to the target brain region while simultaneously collecting emitted fluorescence signals.

Factors such as:

numerical aperture
core diameter
flexibility
material composition

can all influence signal collection efficiency and experimental performance.

Photodetector

The photodetector captures emitted fluorescence and converts it into electrical signals for analysis.

High sensitivity and low noise levels are critical for accurately detecting fluorescence changes while minimizing background interference.

Fluorescent Indicators

Genetically encoded fluorescent indicators are fundamental to fiber photometry experiments. These proteins fluoresce in response to changes in calcium concentration or neurotransmitter activity.

Researchers must carefully select indicators based on:

excitation and emission wavelengths
sensitivity
kinetics
target specificity
compatibility with the optical system

Expression of Genetic Sensors

Reliable expression of fluorescent indicators is one of the most important steps in fiber photometry experiments.

Viral Expression

One common method involves injecting viral vectors carrying fluorescent sensor genes into targeted brain regions.

Adeno-associated viruses (AAVs) are widely used because they efficiently transduce neurons while minimizing tissue damage. Viral expression allows researchers to:

target specific brain regions
achieve cell-type specificity
control expression patterns
study defined neural circuits

Other viral tools, including lentiviruses and retrograde rabies viruses, may also be used depending on experimental goals.

Optimizing viral concentration and injection parameters is important for balancing signal quality and minimizing unwanted background fluorescence.

Transgenic Animal Models

Another strategy involves using transgenic animal models engineered to express fluorescent indicators throughout the brain or within specific cell populations.

Transgenic models eliminate the need for viral injections and can simplify experimental workflows. However, expression levels may vary between brain regions and animal lines.

Advances in genetic engineering continue to improve the specificity and flexibility of transgenic models for neuroscience research.

Implanting the Optical Cannula

After fluorescent indicators have been successfully expressed, an optical cannula is implanted into the targeted brain region.

The optical cannula serves as the interface between the neural tissue and the recording system, allowing excitation light delivery and fluorescence collection.

Precision during implantation is critical for:

reducing tissue damage
minimizing inflammation
preserving signal quality
maintaining experimental consistency

Researchers typically use stereotaxic surgery techniques to ensure accurate placement.

Careful implantation procedures help minimize unintended physiological responses that could interfere with neural recordings.

Important considerations include:

accurate stereotaxic targeting
controlled viral delivery
minimizing injection volume
slow implantation speed
post-injection recovery periods

Attention to these factors helps improve recording stability and data reliability.

Challenges with Traditional Tethered Fiber Photometry

Traditional fiber photometry systems typically rely on tethered optical cables connected between the animal and the recording hardware. While effective, tethered systems can introduce several limitations during behavioral experiments.

Common challenges include:

restricted animal movement
cable-related motion artifacts
tangling during behavioral tasks
signal attenuation through optical connectors
increased setup complexity
limited flexibility during social interaction experiments

Long optical pathways and rotary joints can also introduce additional noise into recordings, often requiring additional signal correction during data processing.

These limitations can complicate behavioral experiments and reduce flexibility when designing complex paradigms involving freely moving animals.

Wireless fiber photometry systems were developed to help reduce many of these limitations.

What Is Wireless Fiber Photometry?

Wireless fiber photometry systems were developed to address many of the limitations associated with traditional tethered recording setups.

By integrating optical components directly into a compact head-mounted device, wireless systems reduce reliance on long optical cables and rotary joints. This helps simplify the optical pathway while reducing cable-related artifacts.

Wireless systems allow animals to:

move more freely
navigate tunnels and complex environments
perform behavioral tasks with fewer restrictions
engage in social interaction studies more easily

These advantages have made wireless fiber photometry increasingly valuable for behavioral neuroscience research.

Introducing the TeleFipho Wireless Fiber Photometry System

The TeleFipho Wireless Fiber Photometry System integrates essential optical components into a lightweight wireless headstage mounted directly onto the implanted optical cannula.

The system combines:

excitation light source
optical filters
photodetectors
wireless communication hardware

A wireless base station connects directly to a computer for data acquisition and experimental control.

By eliminating long optical cables, TeleFipho helps reduce motion artifacts caused by cable movement and rotary joints while simplifying the experimental setup.

The shorter optical pathway can also help reduce signal attenuation associated with multiple optical connectors.

The compact wireless design allows animals to move through tunnels, interact socially, and perform behavioral tasks with fewer physical constraints compared to tethered systems.

Learn more about the TeleFipho Wireless Fiber Photometry System.

Benefits of Wireless Fiber Photometry

Wireless fiber photometry systems provide several advantages for behavioral neuroscience experiments.

Reduced Motion Artifacts

Removing long optical cables helps minimize artifacts caused by cable movement and rotary joints.

Improved Behavioral Flexibility

Wireless systems allow animals to move more freely during experiments involving locomotion, exploration, social interaction, and operant conditioning tasks.

Simplified Experimental Setup

Wireless platforms reduce cable management complexity and streamline experimental workflows.

Enhanced Multi-Animal Studies

Wireless systems can simplify experiments involving multiple freely moving animals or social interaction paradigms.

Real-Time Data Visualization

TeleFipho software provides real-time visualization of fluorescence signals, allowing researchers to optimize settings quickly and synchronize behavioral events with neural recordings.

Behavioral equipment outputs can also be integrated for automated event alignment during experiments.

Applications of Fiber Photometry in Neuroscience

Fiber photometry is now widely used across many areas of neuroscience research.

Common applications include:

reward circuitry studies
addiction research
learning and memory experiments
stress and anxiety models
social behavior studies
sleep and circadian rhythm research
neurotransmitter release monitoring
closed-loop neuroscience experiments
operant conditioning studies
multi-region neural circuit analysis

The ability to combine neural recordings with behavioral analysis has made fiber photometry a versatile tool for studying brain function in vivo.

Fiber Photometry vs Traditional Imaging Techniques

Different neural recording methods offer different strengths depending on the goals of the experiment.

Technique	Advantages	Limitations
Fiber Photometry	Simplified setup, behavioral flexibility, lower complexity	Population-level signals
Miniscopes	Cellular-level imaging	Increased weight and setup complexity
Two-Photon Imaging	High spatial resolution	Restricted movement and expensive instrumentation
Electrophysiology	Direct electrical recordings	Limited cell-type specificity

Fiber photometry remains particularly valuable for experiments involving behavioral flexibility and population-level neural activity monitoring.

Frequently Asked Questions

What does fiber photometry measure?

Fiber photometry measures fluorescence changes associated with neural activity, calcium signaling, or neurotransmitter release.

Is fiber photometry invasive?

Yes. The technique requires surgical implantation of an optical cannula and expression of fluorescent indicators within neural tissue.

What is the difference between fiber photometry and miniscope imaging?

Fiber photometry records bulk fluorescence signals from neuronal populations, while miniscopes provide cellular-resolution imaging.

Can fiber photometry be wireless?

Yes. Wireless systems such as TeleFipho integrate optical components into a compact head-mounted device to eliminate tethered optical cables.

What animals are commonly used in fiber photometry?

Fiber photometry is commonly performed in mice and rats during behavioral neuroscience experiments.

Learn More About Wireless Fiber Photometry

Wireless fiber photometry continues to expand the possibilities of behavioral neuroscience by reducing experimental constraints and simplifying neural recordings in freely moving animals.

If you would like to learn more about the TeleFipho Wireless Fiber Photometry System and its applications in neuroscience research, download our comprehensive wireless fiber photometry eBook.

Download the Wireless Fiber Photometry eBook

References

Grienberger, C. and Konnerth, A. (2012) “Imaging calcium in neurons”, Neuron, 73(5), pp. 862–885. doi:10.1016/j.neuron.2012.02.011.

Osakada, F. et al. (2011) “New rabies virus variants for monitoring and manipulating activity and gene expression in defined neural circuits”, Neuron, 71(4), pp. 617–631.

Shen, Y. et al. (2020) “Advances in genetically encoded fluorescent indicators for neuroscience”, Nature Reviews Neuroscience.

« Older Entries

Not sure which EEG/EMG system is right for your study?

Tethered EEG/EMG Systems: Direct Signal Transmission With Physical Constraints

Wireless EEG/EMG Telemetry Systems: Increased Freedom With Data Tradeoffs

Onboard Memory EEG/EMG Systems: Clean Data With Added Planning Requirements

Animal Stress and Experimental Complexity Considerations

Choosing the Right EEG/EMG Recording System for Your Experiment

Not sure which EEG/EMG system fits your study?

Why Task Design Matters in Operant Conditioning

Small Design Choices, Large Behavioral Effects

Key Considerations When Designing a Task

Align Response Modality and Arena Design With the Subject

Response modality at a glance

Choose Reinforcement Schedules That Match Experimental Goals

Design Tip

Schedule selection guide

Control Session Structure, Training Frequency, and Housing Conditions

Reproducibility Boost

A Step-by-Step Framework for Task Design

Define the target behavior

Select a response modality

Choose a reinforcement schedule

Set session parameters

Pilot & shape behavior

Control environment & housing

Common Pitfalls in Operant Conditioning Task Design

Conclusion

Designing a new operant conditioning paradigm?

References

Wireless Optogenetics Offers Freedom anda Precise Control

Wireless Fiber Photometry Helps Capture Cellular Activity in Real Time

Tethered vs Wireless: Separate and Integrated Approaches

Combined optogenetics and fiber photometry usher in a new era in neuroscience

Wireless fiber photometry and optogenetics untether technological advances in translational science

Considering Closed-Loop Experiments?

References

What Is Baseline Drift?

Capacitance and the Initial Response

Major Causes of Baseline Drift

Temperature Effects and Stabilization Strategies

Drift Originating from the Column or Mobile Phase

Tubing Materials

Troubleshooting Case Study: Sensitivity Loss after Changing Methanol Brand

The Fundamentals of Troubleshooting

Conclusion

What is HPLC-ECD?

Common Targets

Key Benefits:

What Is LC-MS/MS?

Key Advantages:

Choosing between HPLC-ECD and LC-MS/MS

Can you use both in the same lab?

Case Study Highlight: Substance Abuse Research

When to choose which technique

Let’s talk through your workflow

The Limitations of Tethered EEG Systems in Neuroscience Research

Restricted Movement and Unnatural Behaviors

Increased Stress Levels

Physical Interference and Data Artifacts

How Wireless EEG Devices Address These Challenges

Minimizing Data Artifacts

Freedom of Movement

Reduced Stress

Ethical Considerations

How Wireless EEG Advantages Benefit Research Areas

Neurological Disorders

Sleep Research

Epilepsy Research

Introducing the ELG-2 Datalogger as a Solution

Key Features of the ELG-2 Datalogger

Conclusion: Advancing Neuroscience with Wireless EEG Technology

Ready to elevate your neuroscience research with wireless EEG?

I. Introduction

II. The Science Behind Tissue Clearing

A. Optical Properties of Biological Tissues

B. Mechanisms of Tissue Clearing

III. Tissue Clearing Applications

A. Neuroscience

B. Developmental Biology

C. Cancer Research

IV. Methods of Tissue Clearing
