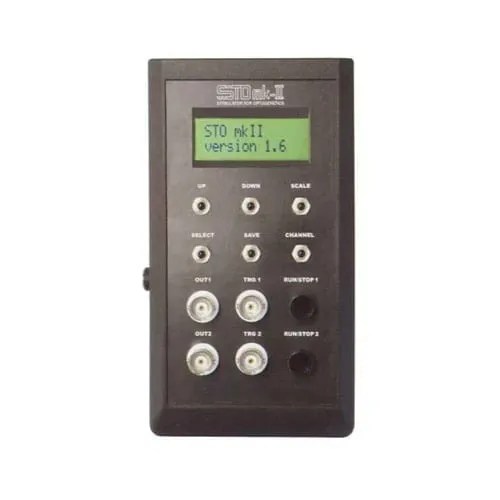

Pulse Generator for Optogenetics, STOmk-2

STOmk-2 is a pulse generator developed for optogenetics. By connecting STOmk-2 to TRG port on the Teleopto Remote Controller via a trigger cable, you can control the timing of light stimulation by TTL pulses. Pulses are defined by the parameters illustrated below.

Specifications:

• Delay: 100 μs – 999 s
• Width: 100 μs – 999 s
• Interval: 100 μs – 999 s
• Pulse Number: 1-999
• Repeat Interval: 100 μs – 999 s
• Repeat Number: 1-999
• Amplitude: 0.1 – 5.0 V
